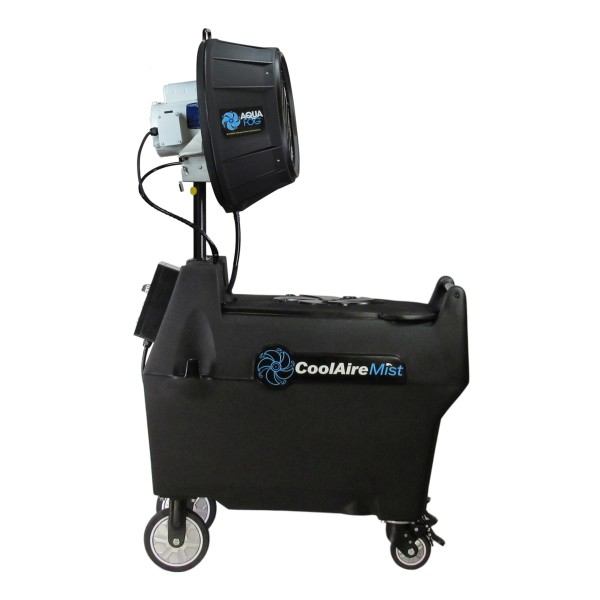

Jaybird Hellcat CM-F6F-50 CoolAire 70 Gallon Mobile Fine-Mist And Fogging Fan With Pivoting Head (50Hz)

Details

Jaybird Hellcat CM-F6F-50 CoolAire 70 Gallon Mobile Fine-Mist And Fogging Fan With Pivoting Head (50Hz)

The Jaybird Hellcat CoolAire delivers superior performance in industrial and greenhouse environments. This mobile fogging system is designed to deliver a fine mist for evaporative cooling, humidification, chemical fogging, and other applications. With a large 70-gallon reservoir and a durable design suited for harsh conditions, it’s your go-to solution for sustained, automated misting on hard, flat surfaces such as concrete and asphalt. Capable of being manually filled or directly connected to a water supply for long-term installations. The Hellcat can be used as a standalone unit or integrated with a control system for long-term, automated operation. Easy to transport and store, its unique atomizer blade design combines fog production and propulsion using a single-speed motor, minimizing complexity and maximizing reliability. Easily adjust the pivoting head from 7.5 to 30 degrees with no tools required.

Key Features

• Adjustable Pivot Fogging Head
• Easy To Push And Store
• Auto Shut-Off Feature
• Oscillation Sweeps: 30, 45, 60, or 75 degrees
• Durable Construction
• Ideal For Interior Humidification, Evaporative Cooling And Chemical Fogging

Specifications:

• Tank Capacity: 70 Gallons
• Evaporative Cooling: 83,100 Btu/h 50Hz
• Housing Diameter: 21 in
• Oscillation Sweeps: 30, 45, 60, or 75 degrees
• Pivot Capability: Up to 30 degrees
• Motor: 1/3 HP - 4.4A @ 240V 50Hz
• Net Fogging Output: Min. 2.75 GPH / Max. 12.8 GPH
• Run Time: With Full Tank - Min 25.5 hrs / Max 5.5 hrs.
