Jaybird Turbo XE 2000 AquaFog Greenhouse Mist System | 115/230VAC 60Hz

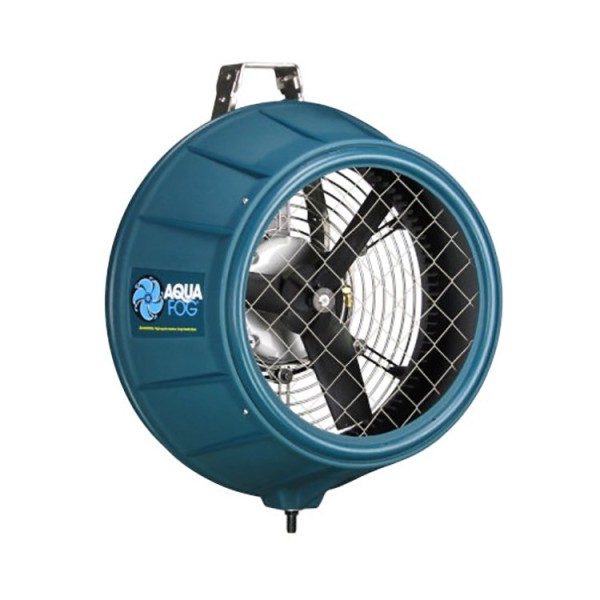

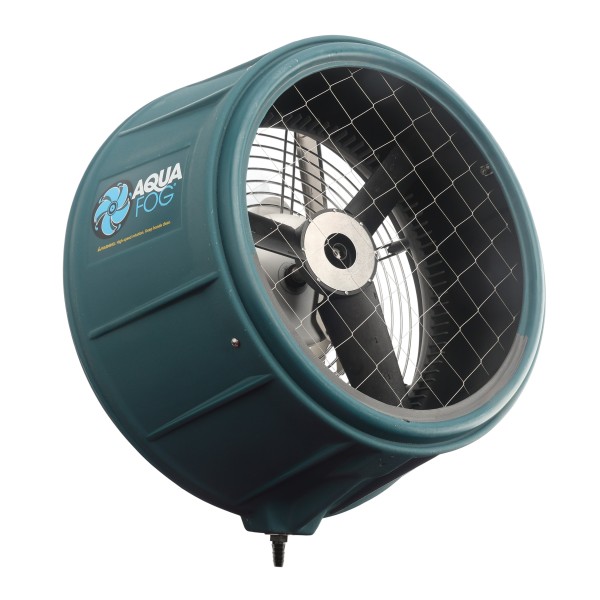

The Jaybird Turbo XE 2000 Rear-Feed Fogging Unit is designed for high-performance fogging applications with a 1/2HP, 115/230V, 60Hz, Single-Phase motor. The Turbo XE 2000 unit can be easily integrated into existing systems and can be mounted using universal brackets or U-bolts. This flexibility makes it an excellent choice for a wide range of industrial and commercial settings.

Features:

• UV-stabilized and corrosion-resistant construction: 304 stainless steel, polypropylene, and polyethylene
• Rear-Feed Blade Design
• Nozzle-Free Atomization
• Adjustable Fogging Rate of up to 34 GPH

Specifications:

• Propulsion Distance: 30-35 ft / 10-11 m
• Noise @ 10 ft: 72 dB(A)
• Average Particle Size: 5-10 microns @ low output, 20 microns @ mid output, 25 microns @ high output
• Net Fogging Output: up to 15.8 GPH
• CFM: 1/2 HP - 3,000
• Cooling Capability: 127,500 Btu/h @ 60Hz
• Energy Consumption: 1/2 HP - 1/2A @ 230/460V 3Ph
• Material: 300 Series stainless steel
• Operating Temperature: 31° to 160° F
• Dimensions: 25" (H) x 21" (W) x 17.5" (D)
• Noise Level: 72 dB(A) at 10 feet
• Propulsion Distance: 30-35 feet
• Operating Environment: Effective in temperatures from 31Degrees F to 160° F and humidity levels up to 100% RH
